Description

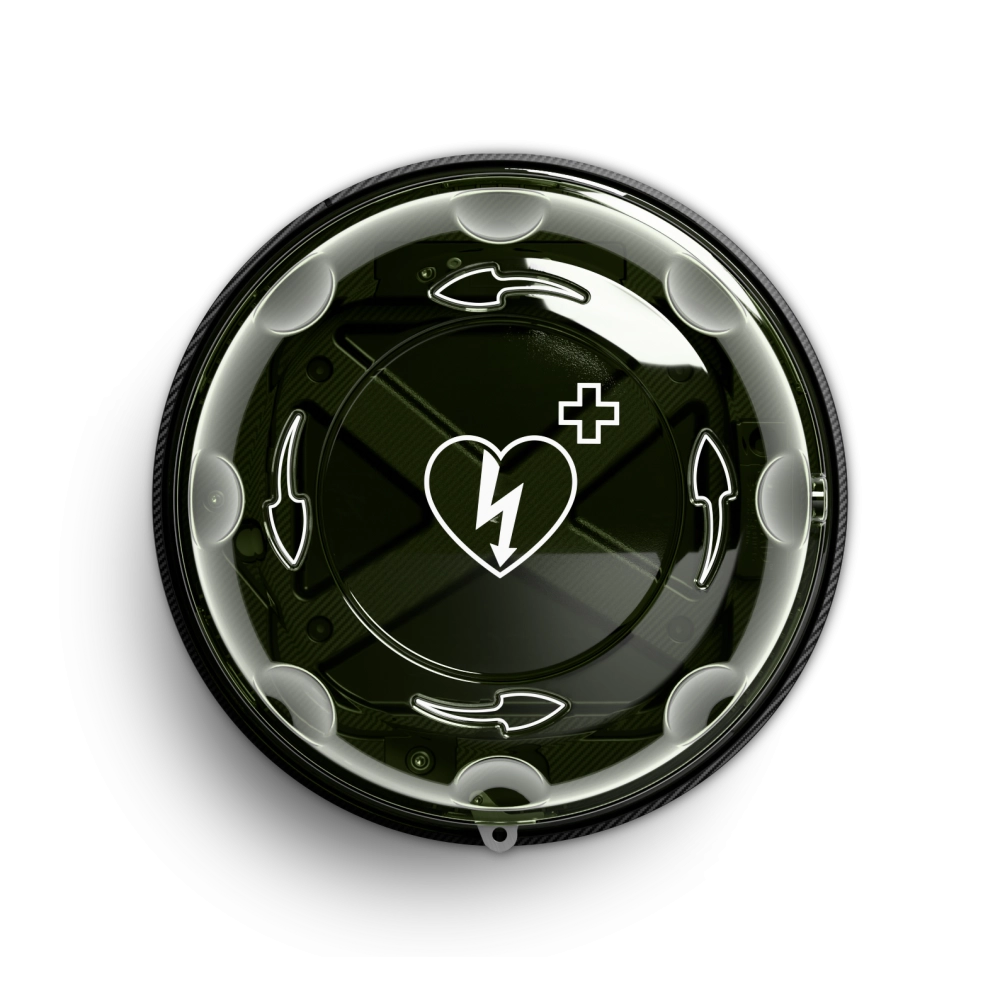

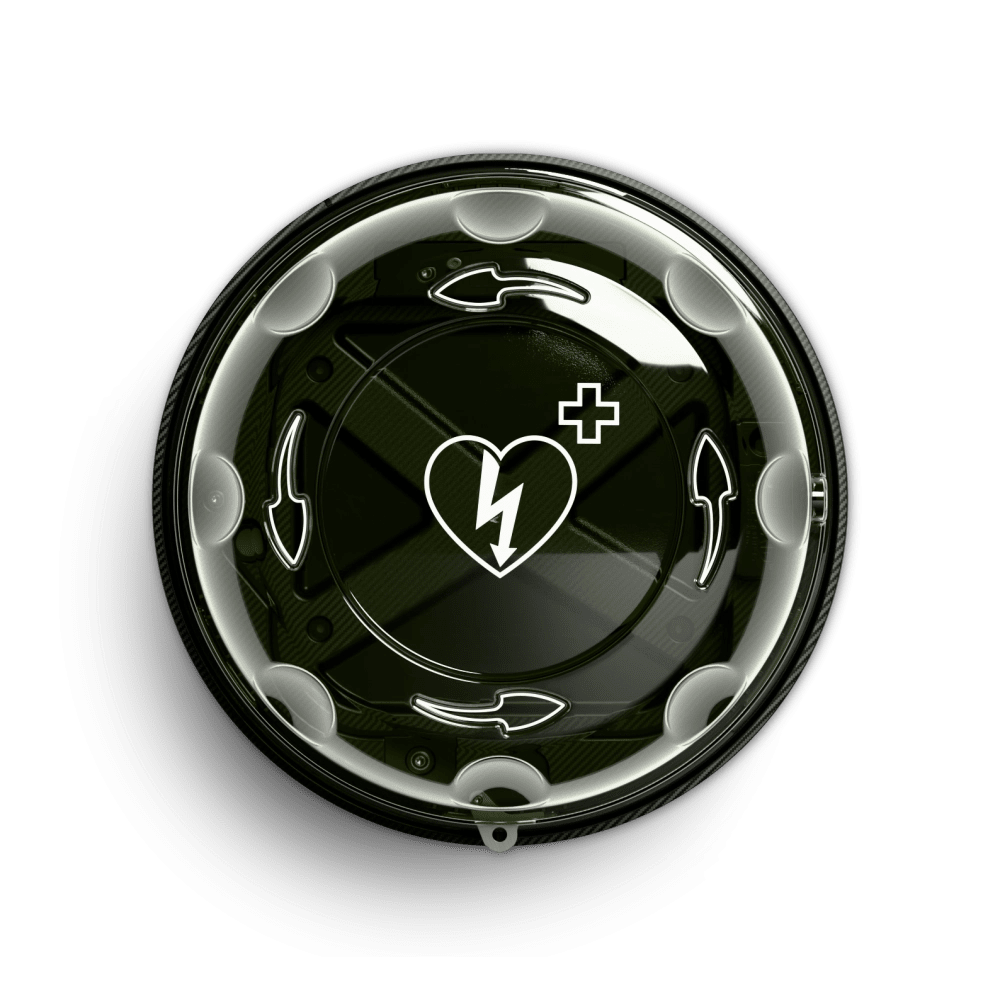

The heated version of the ZOLL Rotaid Solid Plus. It carries the same rotating cover and alarm as the standard model, with an integrated 24 volt heating system and thermostat that keep the interior above the temperature at which AED batteries and electrode gel begin to fail. Rated to -5 F / -20 C.
Why It Fits Your Program
Cold is the quiet killer of AED readiness. Electrode gel can freeze, battery capacity drops sharply in low temperatures, and a device that reports ready at room temperature may not perform in an unheated space. Order the heated version for parking garages, loading docks, arenas, outdoor athletic facilities, warehouses, and any unconditioned space that drops below freezing. Climate-controlled interiors do not need it and should choose the standard alarmed model at part number 10.0305.011.
What Is Included
- ZOLL Rotaid Solid Plus cabinet with rotating polycarbonate cover
- Integrated 24 V heating system with automatic thermostat
- Transformer, connector set, and power cord
- Eight LED lights
- Integrated 90 dB audible alarm with two AAA batteries
- Mounting hardware for four recessed fixing positions
Specifications
| Manufacturer Part Number | 10.0315.011 |
|---|---|
| Manufacturer | Rotaid, supplied through ZOLL |
| Exterior Dimensions | 18.9 in W x 18.9 in H x 7.1 in D (48 x 48 x 18 cm) |
| Weight | 14.8 lb (6.7 kg) |
| Cover Material | 100% recycled transparent polycarbonate, 5 mm, UV blocking |
| Backplate Material | 100% recycled HDPE, three individual plates |
| Ingress Protection | IP55 per IEC60529 / EN60529 |
| Impact Protection | IK10 (20 J) |
| Operating Temperature | -5 F / -20 C and above |
| Heating | 24 V, fully automated with built-in thermostat, factory installed |
| Lighting | Eight LED lights |
| Alarm | 90 dB, magnet triggered on cover rotation, ABS housing, two AAA batteries |
| Power | Mains connection required at the mounting location, transformer included |
| Opening Style | Rotating cover, one-handed operation |
| Environment | Outdoor and unconditioned indoor spaces |
Which Rotaid Cabinet Do You Need
| Model | Part Number | Environment | Temperature Floor | Power | Remote Monitoring |
|---|---|---|---|---|---|
| Solid Plus Alarmed | 10.0305.011 | Indoor and no-frost outdoor | 40 F / 4 C | None required | Optional add-on |
| Solid Plus Heat Alarmed (this page) | 10.0315.011 | Outdoor and unheated interiors | -5 F / -20 C | 24 V mains | Optional add-on |
| Rotaid 247 Advanced Outdoor | 10.0400.010 | Outdoor, year-round public access | -4 F / -20 C | Mains | Connected ready |
How to choose: this cabinet is the answer when the wall drops below 40 F but the AED is still inside your perimeter. If the device also needs to be reachable when the building is locked, take the 247 instead. If you already own an unheated Solid Plus, the Rotaid 24 V heating system, part number 40.2500, retrofits it for less than a replacement cabinet.
Compatibility
Universal AED cabinet. Houses ZOLL AED 3, ZOLL AED Plus, Powerheart G5, and most common AED models. A heating system is also available separately as an upgrade to the standard cabinet, part number 40.2500, if you already own an unheated Solid Plus.
Program Context
Plan the electrical supply before installation. A heated cabinet needs power at the mounting location, and discovering that after the cabinet is on the wall means a second trade visit. Check manufacturer operating temperature ranges for your specific AED model and confirm the cabinet keeps you inside them: the -20 C floor here is the cabinet rating, not a guarantee for every device stored in it.
