Description

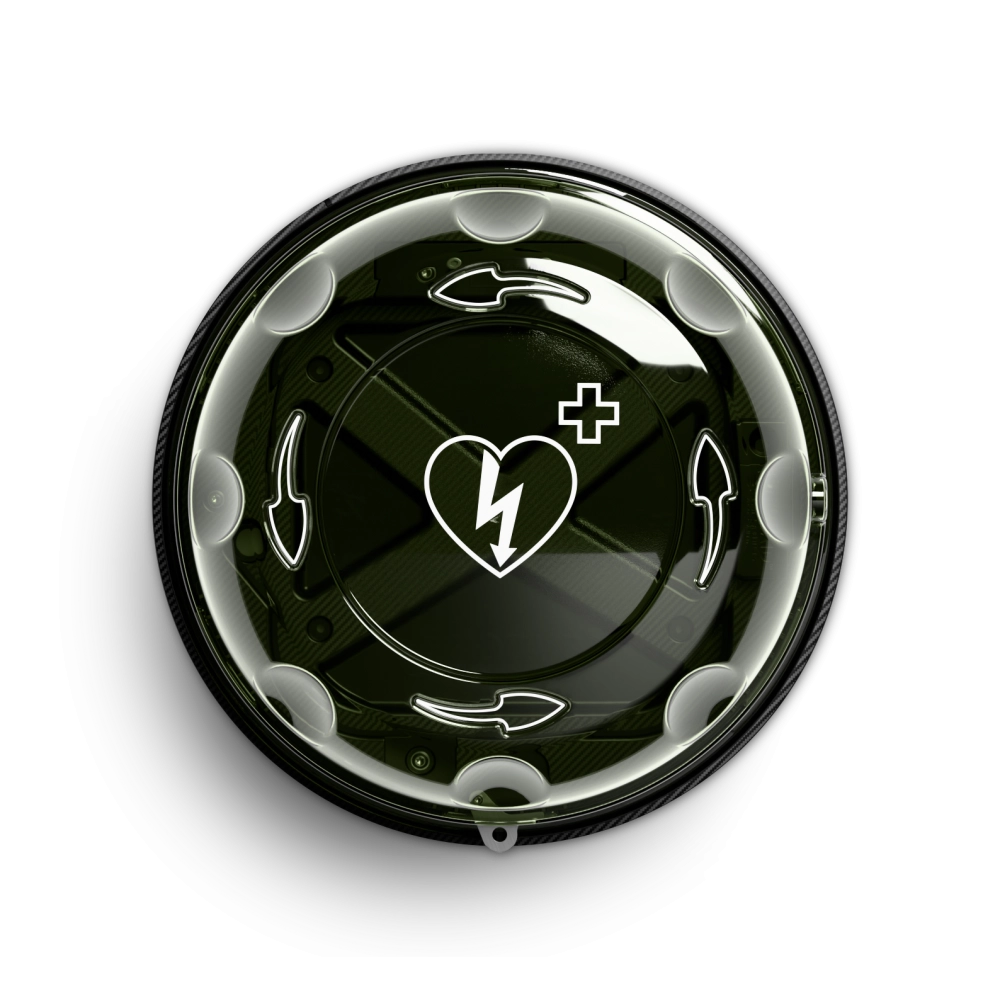

The ZOLL Rotaid Solid Plus is a rotating AED cabinet with a distinctive circular design and a built-in alarm. Instead of a hinged door, the cover swivels aside, which means a responder can open it one-handed without figuring out a latch under pressure.
Why It Fits Your Program
The bright housing reads as emergency equipment from across a room, which is a real advantage in gyms, sports facilities, schools, and public buildings where an AED needs to be noticed by people who were not looking for it. The alarm sounds when the cover is opened, deterring casual tampering while announcing a genuine retrieval. For installations that need visibility more than cold-weather protection, this is the right unit.
What Is Included
- ZOLL Rotaid Solid Plus cabinet with rotating polycarbonate cover
- Integrated 90 dB audible alarm with two AAA batteries
- Three-piece recycled HDPE backplate
- Mounting hardware for four recessed fixing positions
- Installation instructions
Specifications
| Manufacturer Part Number | 10.0305.011 |
|---|---|
| Manufacturer | Rotaid, supplied through ZOLL |
| Exterior Dimensions | 18.9 in W x 18.9 in H x 7.1 in D (48 x 48 x 18 cm) |
| Weight | 14.8 lb (6.7 kg) |
| Cover Material | 100% recycled transparent polycarbonate, 5 mm, UV blocking |
| Backplate Material | 100% recycled HDPE, three individual plates |
| Seal | Rubber gasket, dust and water protection |
| Ingress Protection | IP55 per IEC60529 / EN60529 |
| Impact Protection | IK10 (20 J) |
| Operating Temperature | 40 F / 4 C and above |
| Alarm | 90 dB, magnet triggered on cover rotation, ABS housing, two AAA batteries |
| Power Required | None. Battery powered alarm only |
| Opening Style | Rotating cover, one-handed operation, four directional arrows and six grip indents |
| Environment | Indoor and no-frost outdoor locations |
Which Rotaid Cabinet Do You Need
| Model | Part Number | Environment | Temperature Floor | Power | Remote Monitoring |
|---|---|---|---|---|---|
| Solid Plus Alarmed (this page) | 10.0305.011 | Indoor and no-frost outdoor | 40 F / 4 C | None required | Optional add-on |
| Solid Plus Heat Alarmed | 10.0315.011 | Outdoor and unheated interiors | -5 F / -20 C | 24 V mains | Optional add-on |
| Rotaid 247 Advanced Outdoor | 10.0400.010 | Outdoor, year-round public access | -4 F / -20 C | Mains | Connected ready |
How to choose: if the wall never drops below 40 F, this cabinet is the right one. If it does, take the heated model. If the AED needs to be reachable when the building is locked, take the 247. An existing unheated Solid Plus can be retrofitted with the Rotaid 24 V heating system, part number 40.2500.
Compatibility
Universal AED cabinet. Houses ZOLL AED 3, ZOLL AED Plus, Powerheart G5, and most other common AED models. The Rotaid Heating System, part number 40.2500, can be added for cold environments, and the Rotaid 247 Connectivity Module, part number 45.2000.200, adds remote monitoring.
Program Context
Cabinet choice is a visibility decision as much as a protection decision. A device stored in a plain white box blends into a wall of plain white boxes. The Rotaid form factor exists specifically to be recognizable at a glance, which shortens the search phase of a response. Note the 40 F floor: this cabinet is rated for indoor and no-frost outdoor use, so any location that drops below freezing needs the heated model or the heating upgrade. Pair it with overhead signage and include the alarm in your monthly inspection.
