Description

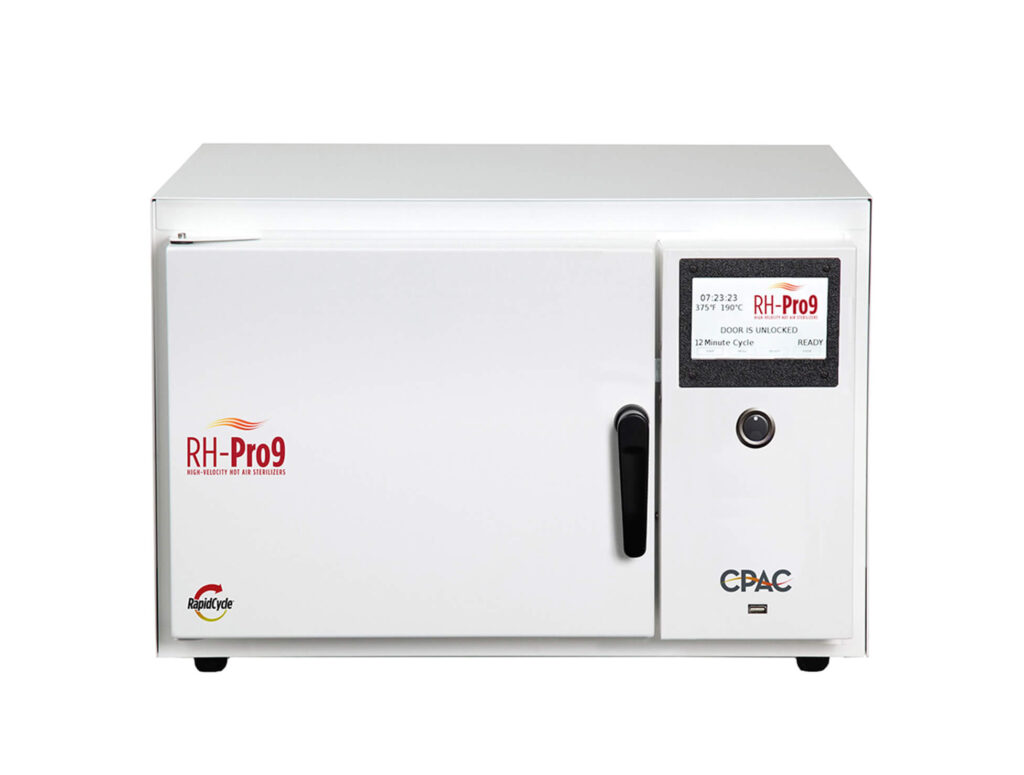

The CPAC RapidHeat RH-Pro9 is a compact high-velocity hot air (HVHA) dry heat sterilizer for practices that want fast instrument turnaround in a smaller countertop footprint. It circulates rapidly moving dry hot air through the chamber, transferring heat by convection and conduction to achieve a 12-log spore kill without water, steam, or chemicals.
Why practices choose the RH-Pro9
- Fast cycles. Unwrapped instruments complete in 14 minutes total, handpieces in 16 minutes, pouched instruments in 21 minutes, and wrapped cassettes in 36 minutes.
- Smaller footprint. Under 20 inches wide and 13.75 inches tall, so it fits countertops where a full-size autoclave will not.
- Dry process. No distilled water, no steam lines, no separate drying stage.
- Four temperature settings. A 375Ā°F high-temperature cycle plus three low-temperature cycles at 280Ā°F, 300Ā°F, and 320Ā°F.
- Cycle logging. On-screen time-temperature graph and countdown timer, with log export to USB flash drive.
- Available in two voltages. 110V-120V and 220V-240V.
Specifications
- Outer dimensions: 19.63" W x 20" D x 13.75" H

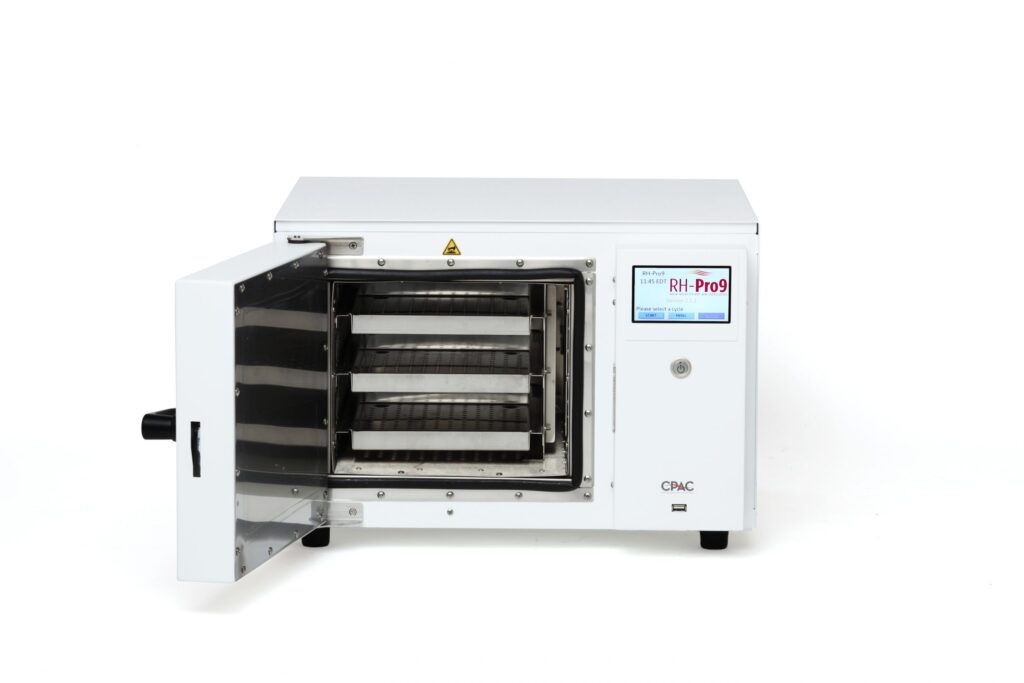

- Chamber: 9.5" W x 15.6" D x 7.85" H
- Chamber capacity: 1,163 cubic inches (5 gallons / 19 liters)
- Weight: 68.2 lbs (31 kg)
- Electrical, 115V model: 120 VAC, 60Hz, 12 amps, dedicated 15A single-phase circuit
- Electrical, 230V model: 230 VAC, 50/60Hz, 6 amps, dedicated 10A single-phase circuit
- Power draw: 1,400 W warm-up, 300 W operating
- Operating environment: 41Ā°F to 104Ā°F, up to 80% relative humidity
What is included
- RH-Pro9 sterilizer

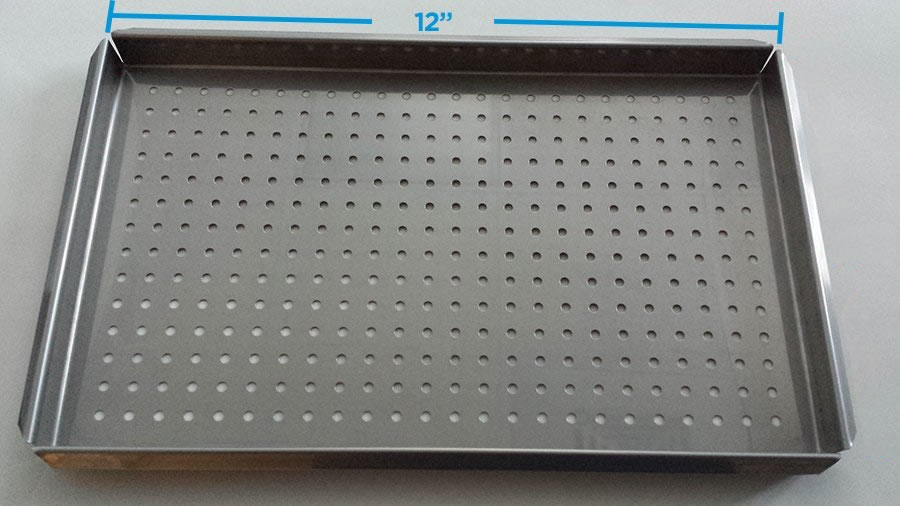

- Three (3) instrument trays
- Power cord
- One pair of heat-protective gloves
- User manual and operator quick start guide
Consumables and compatibility
Use only CPAC nylon pouches, sterilization wrap, and dry heat indicator tape with this unit. Steam autoclave pouches and wrap are not compatible with the HVHA process. Confirm temperature compatibility with your instrument manufacturer before running any cycle. Low-temperature cycles require operator validation to confirm a full 12-log spore kill under your load conditions.
Warranty and certifications
Manufacturer warranty terms and regulatory listings are available on request. An extended parts-only warranty is also available separately (part PR0602). Call 888-541-2337 for details.
Not sure whether the RH-Pro9 or RH-Pro11 fits your instrument volume? Call 888-541-2337 and we will walk through it with you.
Images shown may vary slightly from items shipped. Information supplied is deemed to be accurate but cannot be guaranteed.
