Description
Physio-Control CR2 AED Demo Unit (non-shocking device). The Demo resembles the Stryker LIFEPAK CR2 in form and function.
Demo offers a Bluetooth Function to use in demonstrating the available product and functionality with APPs and WiFI features of the live device (the trainer does not offer).

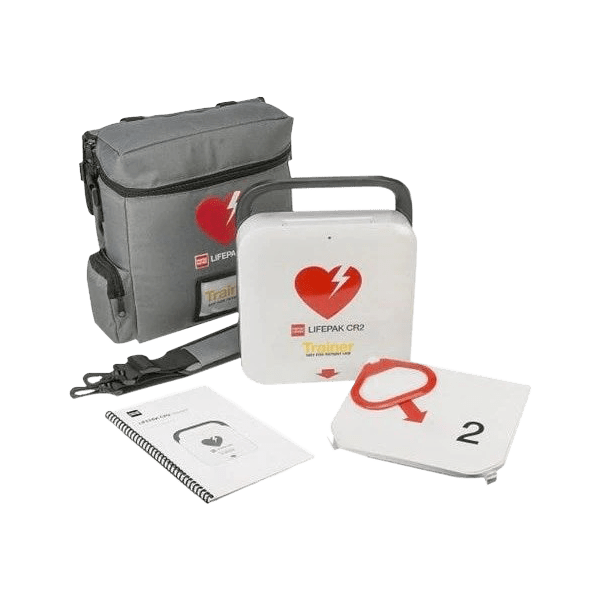

CR2 AED Demo Package Includes
- Device Demo Unit
- Bluetooth function
- One pair of adult/child training electrodes
- Manual
*Carrying Case / Carry Tote (11260-000048) - SOLD SEPARATELY*
Product Features:
- Demo device with one pair of adult/child training electrodes
- Simulates both semi-automatic and fully-automatic options
- Scenarios and features as a standard Trainer, controllable from the LCD panel located under the electrodes tray
- Uses the same voice prompts and CPR coaching verbiage as the live CR2 AED
- Provides live feedback for CPR rate, depth, and hand placement including a metronome
- Volume adjusts automatically depending on background noise
The LIFEPAK CR2 AED Demo provides realistic training in the use of the LIFEPAK CR2 AED without the actual charge and discharge of electrical energy. Designed to simulate the appearance of the LIFEPAK CR2, the Trainer simulates its actual operation using the same simple user interface. Pre-set demos can be programmed for fully automatic or semi-automatic mode to enable a quick demonstration of the key LIFEPAK CR2 features, as well as the benefits of cprINSIGHT™analysis technology.
Like the LIFEPAK CR2, the Trainer uses ClearVoice™ technology to enable voice prompts to be heard clearly even in noisy environments for clear instruction. The LIFEPAK CR2 Trainer demo app can be used to set up automatic email notifications or send manual email notifications via Bluetooth® from any Windows®, Android® or IOS® mobile device. This app simulates the automatic email notifications provided when a LIFEPAK CR2 is managed by LIFELINKcentral AED program manager.
Simple and Affordable
The Trainer detects when pressure is placed on the QUIK-STEP™ training electrodes and automatically advances through the scenario, eliminating the need for a remote control. A pause button on the unit enables topping an in-progress scenario as needed. Plus, the trainer is cost-effective. Not only is it powered by four standard D-cell batteries, but the electrodes are affordable and reusable, simulating the rapid-access QUIK-STEP defibrillation ECG electrodes unique to the LIFEPAK CR2 AED.
Scenario options
Device type: Semi, fully-automatic
Number of events: 1, 2, 3, 4, repeat
Shock advised: Yes, no
CPR metronome: Hands-only, 30:2
CPR time: Short, 60s, 120s, 180s
cprINSIGHT technology: On, Off
No CPR detected: On, Off
Motion detected: On, Off
Bilingual: On, Off
Second language: All available languages
Check breathing: On, Off
Batteries
6 volts/4 cells, range 3.3–6.6 Vdc. Four
nonchargeable D-cell alkaline batteries. New
batteries will provide no less than 100 hours of
continuous operation at volume 4.
Buttons
Language, power, child mode, shock
Physical characteristics
Height: 10.7 in (27.2 cm), with handle
Width: 8.6 in (21.8 cm)
Depth: 3.4 in (8.6 cm)
Weight: 3.9 lb (1.8 kg), with batteries
Images shown may vary slightly from items shipped. Information supplied is deemed to be accurate but cannot be guaranteed.
