Description

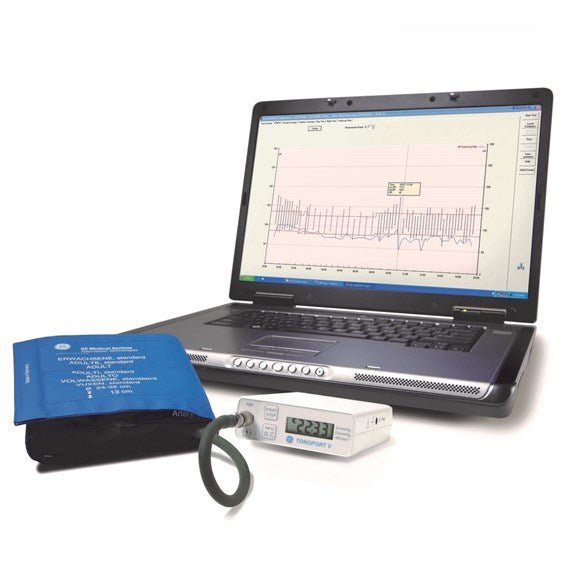

The GE TONOPORT V Ambulatory Blood Pressure System is a top-of-the-line device that helps you measure your blood pressure levels both accurately and conveniently. It's extremely easy to use, and it gives you accurate readings every time. Plus, the Cardiosoft Diagnostic System makes it easy to track heart health over time. This powerful combo set is perfect for anyone looking for an accurate and user-friendly way to monitor blood pressure and heart health!
Specifications:
Memory: 128 x 8-bit (= 1 Megabit) EEPROM 512 x 8-bit (= 4 Megabit) EEPROM
Measuring Range:
- Systolic pressure: 60-260 mmHg (8.0-34.6 kPa)
- Diastolic pressure: 40-220 mmHg (5.3-29.3 kPa)
Mean pressure: 50-250 mmHg (6.7-33.3 kpa)
Heart rate (HR): 35-240 beats per minute
Acquisition Period: Up to 30 hours or 200 measurements
Battery: 2 AA size rechargeable NiMH batteries, 1.2 V, >1500 mAh or 2 AA size high-current capable alkaline batteries
Battery Charger: Protection class II, IP20; Primary 100 to 240 VAC 50/60 Hz, 0.5 A
Operation: Temperature: 50-104F (10-40C) Relative humidity: 30-75%, non-condensing Atmospheric pressure: 700-1060 hPa
Inflation Noise: 40 dB
Transport & Storage: Temperature: 14-158 F (-20-70C) Relative humidity: 10-90%, non-condensing Atmospheric pressure: 500-1060 hPa
Dimensions & Weight of Recorder:
Height: 27 mm
Width: 80 mm
Depth: 100 mm
Weight: <200 g, including batteries
Medical Device: CE-0482 ROHS compliant
Computer Requirements:
Microprocessor: Minimum Pentium 4 class processor with 2 GHz
RAM: Minimum 1 GB Windows 7 Professional (32 bit); 2 GB Windows 7, Windows 8.1 (64 bit) or Windows 10 (64 bit)
Hard Drive: Minimum 80 GB and 4 GB of free space if used as a standalone system
SW Installation: DVD-ROM drive
Pointer: Mouse
Graphics Adapter: Minimum: SVGA 1024 x 768 Recommended: SXGA 1280 x 1024
Interfaces: Minimum: 2 USB ports (1.1, 2.0, or 3.0) for each device using this type of interface, CD-RW, SD card, network interface card (recommended), Serial RS232 for each device using this interface type
Operating System: Windows 7 Professional (32 bit) with SP1 Windows 7 Professional (64 bit) with SP2 Window 8.1 Pro (64 bit),Windows 8.1 Enterprise (64 bit) Windows 10 Professional (64 bit)
Printer: Equivalent to HP P3015dn (Customer Supplied)
Additional Software for Export Functionality: Microsoft Word and Excel (optional)
Networking LAN: Wireless: 802.11 G, N (optional) TCP/IP interface
Images shown may vary slightly from items shipped. Information supplied is deemed to be accurate but cannot be guaranteed.
